Product S/N:412092216
Spec:DC12V1A12W,CE&RoHS
Product Memo:wall mount,USA plug,CE RoHS
Product Class:01.Power Supply
Input:AC100-240V,
Output:DC12V 1A.

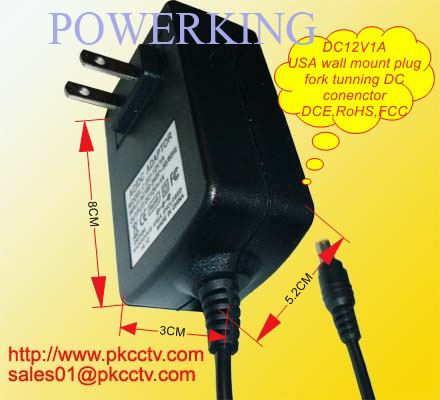

wall mount adaptor.
overload protection
shortcircuilt protection
voltage regulated
CE and RoHS certificates.
America AC plug
|
ITEM |
PKC12V1A | ||
|
Description |
12 V 1A DC |
||
|
Input |
Input AC plug |
Optional | |
|
Input voltage |
AC100-240V50/60Hz | ||
|
Output |
Output Connect ing plug : |
5.5*2.1mm DC | |
|
Output voltage: |
12V DC | ||
|
Output electric current: |
1000MA | ||
|
R ipple wave : |
(mVp-p): <1% | ||
|
Linear modulate: |
¡À0.5%max | ||
|
Temperature coefficient: |
¡À0.02%/¡æ | ||
|
start time |
¡Ü1s(240V output,1o=100%) | ||
|
guard time: |
¡Ý20ms(240V input,1o=100%) | ||
|
Protection |
override protection : |
115% ¡« 150% kvA , automatic recovery | |
|
overvoltage protection |
30% ¡« 150% V AC ,No recovery | ||
|
short-circuit protection |
1 channel £º automatic recovery | ||
|
Environment |
working temperature : |
0¡æ ¡« 40¡æ,10% ¡« 90%RH | |
|
Store temperature : |
-20¡æ ¡« 85¡æ,10% ¡« 90%RH | ||
|
ASL : |
<3000m | ||
|
Cooling: |
Environment | ||
|
Size |
Size: |
X X mm | |
|
weight: |
G | ||
| Certificates:UL,CE,RoHS | CE(EUC,EMC,LVD) | EN 55022:2006+A1:2007 | |
| EN 61000-3-2:2006 | |||
| EN 61000-3-3:2008 | |||
| EN 55024:1998+A2:2003 | |||
| EN 60950-1:2006 | |||
| RoHS(EUT 2002/95/EC) | EPA3050B:1996,EN1122:2001 | ||
| EPA3052:1996,EPA3060A | |||
| EPA7196,EPA3540C,EPA8270C | |||
